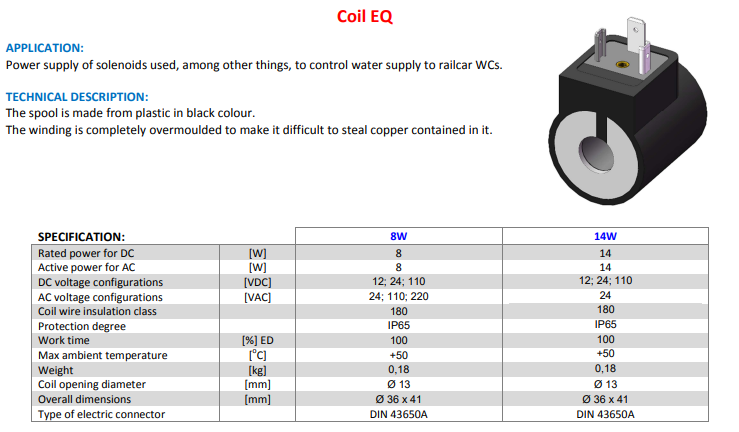

Coil EQ
APPLICATION:
Power supply of solenoids used, among other things, to control water supply to railcar WCs.
TECHNICAL DESCRIPTION:
The spool is made from plastic in black colour. The winding is completely overmoulded to make it difficult to steal copper contained in it.
| SPECIFICATION: |
|
8W |
14W |
| Rated power for DC |
[W] |
8 |
14 |
| Active power for AC |
[W] |
8 |
14 |
| DC voltage configurations |
[VDC] |
12; 24; 110 |
12; 24; 110 |
| AC voltage configurations |
[VAC] |
24; 110; 220 |
24 |
| Coil wire insulation class |
|
180 |
180 |
| Protection degree |
|
IP65 |
IP65 |
| Work time |
[%] ED |
100 |
100 |
| Max ambient temperature |
[oC] |
+50 |
+50 |
| Weight |
[kg] |
0,18 |
0,18 |

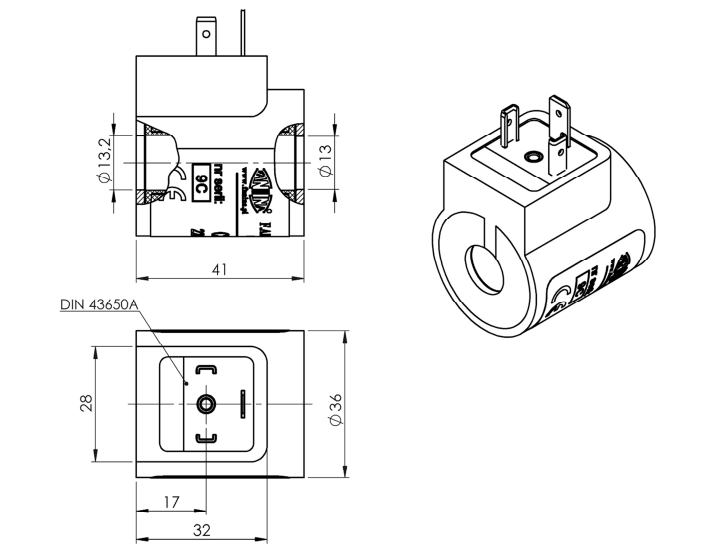

| Coil opening diameter |
[mm] |
Ø 13 |
Ø 13 |
| Overall dimensions |
[mm] |
Ø 36 x 41 |
Ø 36 x 41 |
| Type of electric connector |
|
DIN 43650A |
DIN 43650A |
